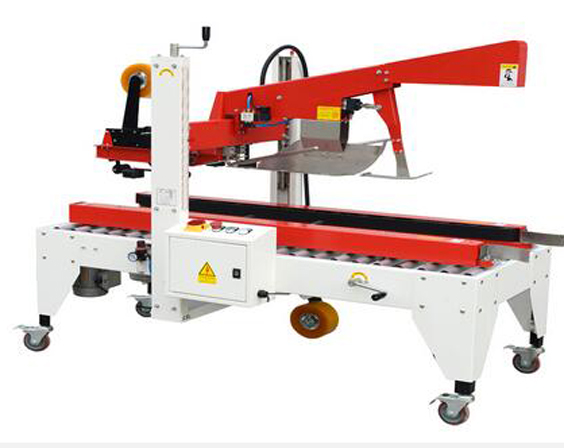

Machine Model: SHXK- FC500
The smallest carton size: L200 * W120 * H120mm
Maximum carton size: L600 * W500 * H500mm
Belt speed: 20 m / min (10 to 15 cases / min)
Mechanical Dimensions: L1700 * W930 * H1510mm
Applicable power: 220 / 380V 50Hz
Applicable gas source: 6kgf / cm², 40nl / min
Power consumption: 0.4KW
Applicable tape: W48,60,75mm choose one
Machine weight: 180KG
Machine features:
• Standard function folding cover sealer;
Can be wired or stand-alone operation, automatic folding cover, up and down, "a" word sealed once completed;
• When changing specifications, adjust the width and height manually.
• Transmission adopts belt drive on both sides;
• Standard machine table height is 600mm;
• Sticking device structure is precise and firm, it runs smoothly and has long service life.
• Outside the standard specifications, acceptable non-standard customization;
|
|
