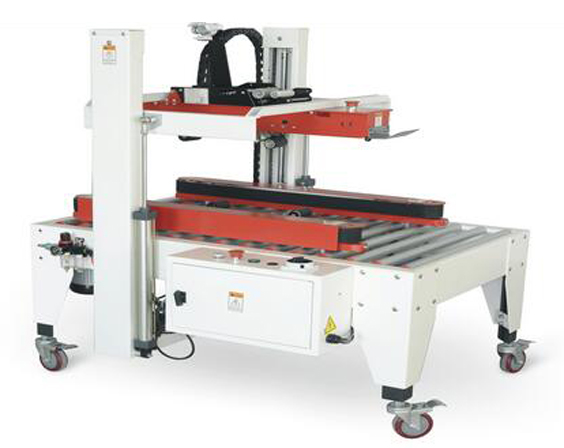

Machine Model: SHXK- FE500
The smallest carton size: L150 * W120 * H130mm
Maximum carton size: L∞ * W500 * H500mm
Belt speed: 20 m / min
Mechanical Dimensions: L1160 * W975 * H1330mm
Applicable power: 220 / 380V 50Hz
Applicable gas source: 6kgf / cm ², 80nl / min
Power consumption: 0.2KW
Applicable tape: W48,60,75mm choose one
Machine weight: 170KG
Machine features:
• Suitable for a variety of specifications at the same time the use of cardboard boxes;
• Automatic adjustment of width and height when changing specifications
• Transmission mode with the next two sides of the belt drive;
• Can be wired or stand-alone operation, manually fold the lid up and down, "a" word sealed once completed;
• Standard machine table height is 600mm;
• Sticking device structure is precise and firm, it runs smoothly and has long service life.
• Outside the standard specifications, acceptable non-standard customization;
|
|
