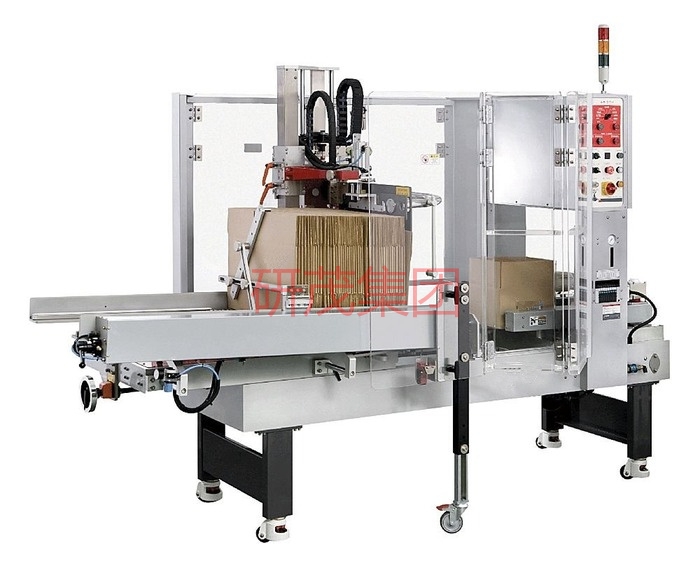

XKCE18 automatic unpacking machine low speed unpacking machine carton box machine
product description:
XKCE18 automatic unpacking machine automatically unpacking, forming, bending the bottom of the folds and now complete the next part of the tape paste, the stack of cardboard boxes automatically open the bottom of the box according to a certain procedure equivalent, and sealed with tape delivery Special equipment for packing machine. Automatic open box machine is a large number of cartons automatically open the box, automatically folded under the cover, automatically seal the bottom of the tape line equipment. Easy to operate, reduce packaging costs. Can be equipped with hot melt machine sealing.
Electrical configuration:
◆ PLC control: Germany "Siemens"
◆ Contactor: France "Schneider"
◆ Sensor: Germany "P + F"
◆ button switch: France "Schneider"
◆ man-machine interface: Germany "Siemens"
◆ Pneumatic components: Taiwan, "Ya Deke" cylinder / solenoid valve / magnetic switch, the German "FESTO" sucker and vacuum generator;
◆ Motor: Taiwan "Ruyang"
Machine parameters:
machine type | XKCE18 |
Power supply | 220V/380V 50/60HZ 500W |
Suitable carton | L:200-450 W:150-400 H:100-350mm |
Sealing speed | 12-18 bins / minute |
Tape width | 48/60mm |
Use gas source | 6-7kg |
Machine size | L2300*W2050*H1450mm |
|
|
